Making High Heel Boots - Part 2 Test patterns

Now that we've got the lasts done, think about this challenge: you have a three dimensional object with curvy shapes and all, and you're supposed to draw patterns to it. All the more, patterns that can be reused and modified later. How on earth could that be possible? With your everyday masking tape! :D
Here I'll demonstrate how the patterns are born to a shoe.

Let's see how:

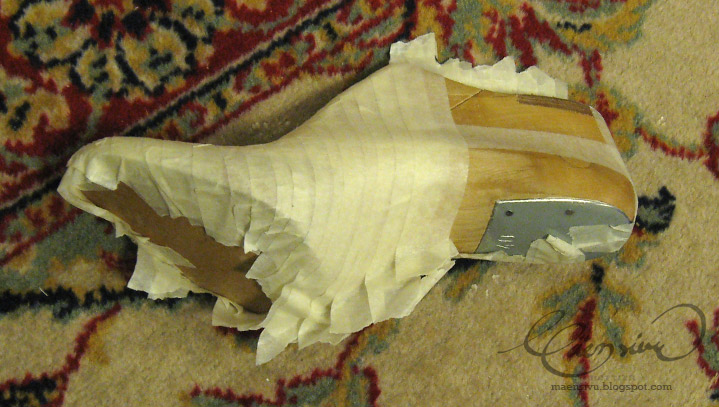

First the last is covered with masking tape in an orderly fashion.

Like so.

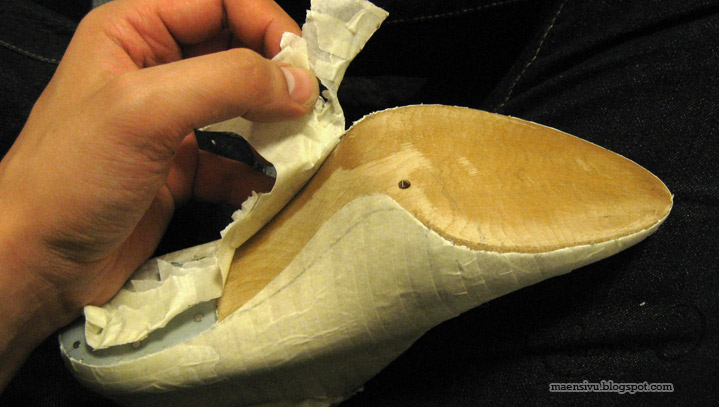

Next, the excess is cut thorough the edges of the sole.

Like so :)

Then, some necessary markings and a central line to the front and back.

And a cut along the middle lines.

And thus we'll have the inner and the outer sides of the last. Which are then removed separately, like seen in this picture.

They'll be a pair of quirky, mischievous pieces of masking tape after...

...So we'll discipline them flat on a cardboard.

Both of them are drawn on top of each other, to produce a single pattern.

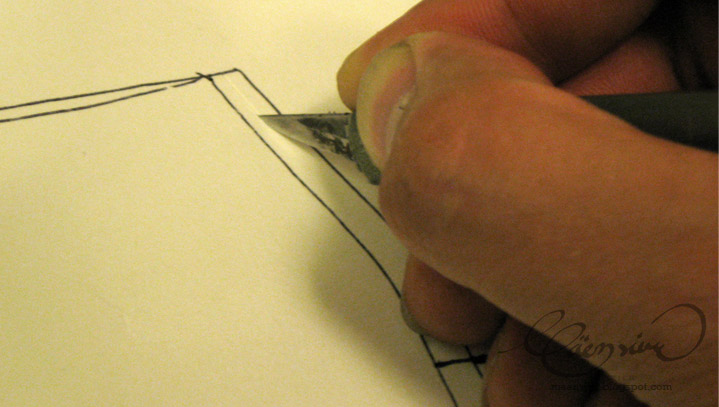

When cutting the copy, some of the areas are halved.

And there it is! If the lasts remain the same, with this pattern one can now draw any kind of design on them.

I have to admit, I'm not very knowledgeable when it comes to drawing patterns. So luckily I've a very skilled colleague, a sturdy professional, Mr. Joonas. This base pattern is 99% his handwork. I just basically drew two lines to it.

Seriously, even Joonas was hesitant of the design, so I'll just have to make a test run with it. Then I'll see how different things'll work.
Next up is cutting the pattern pieces and using them to cut the leathers. And skiving and sewing the leathers, so we'll see what's up with the uppers. Cheerio!

Lesteille täytyy seuraavaksi tehdä kaavat. Yllä esitellään kuinka kolmiulotteisesta lestistä kopioidaan muodot kaksi ulotteisiksi, käyttäen maalarinteippiä :) Useiden vaiheiden jälkeen on viimeisinä kahtena kuvana kollegani Hra. Joonaksen mestarillinen kaavoitus. Itseltäni ei tuo kaavoitus oikein vielä näin mallikkaasti suju, joten oli mahtavaa saada rautaisen ammattilaisen apua. Seuraavaksi sitten leikataan kaavapalat sekä niitä hyödyntäen päällisnahat. Näin päästään testailemaan miten kaavat toimivat.
